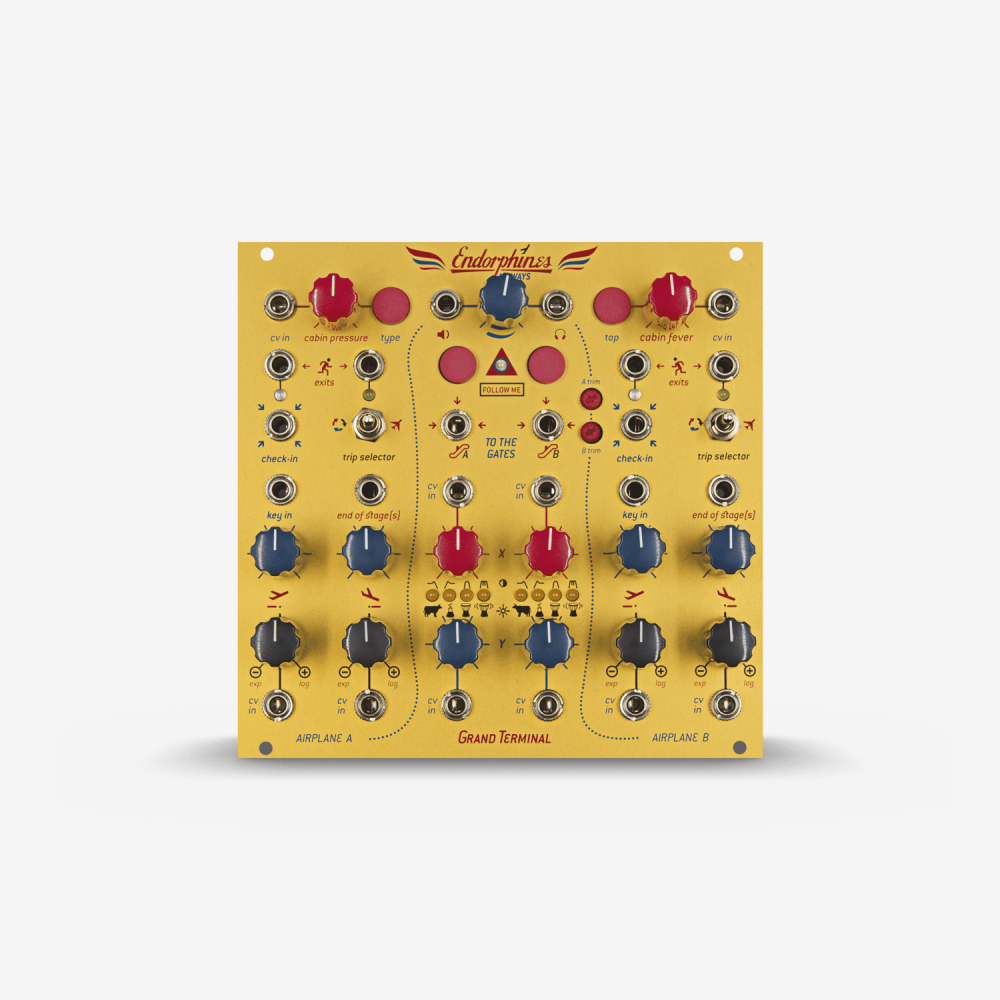

Endorphines Grand Terminal

Dual 8 mode VCF / VCA, dual voltage controlled AD/AR/looping envelope, 16 algorithm stereo FX processor

Dual multi-mode filter (ladder, diode, vactrol, state-variable lp/hp/bp and comb) in dual, stereo and serial modes
Dual AD/ASR/looping envelope generator that acts as band-limited oscillator when cycling at linear slopes
Stereo “Cabin Pressure” processor with different 16 effects: from shimmered halls and reverberations to a spring simulation over tape/ping-pong delays / chorus / distortion / compressor and others.

Separate mono modular level output and stereo line level output for direct line recording or driving the headphones.
Easy firmware update via Audio.

Fully compatible with GatewayT_XP

Audio I/O: 48 kHz 16 bit, 32 bits internal processing

Power consumption:
230 mA +12V
65 mA -12V
0 mA 5V

Dimensions:
26 HP
26 mm deep

FAQ:

My Grand Terminal is behaving strangely. Can't change fx or vcf types. Signal is too low or distorted.
Press all four knobs at once and hold them for more than 4 seconds. This is a soft reset and brings the module back to the factory settings.

I have small noise in my audio output in a certain cases?
Try the following PSU adapter for your modular case: 15V Meanwell GST90A15

How can I replace the panel with other color?
Check the endorphines website and panels replacement guide. Also don’t forget the knobs and buttons.

Rainbow cable pinout. Side red/brown pair of pins always correspond to -12V similar as with typical gray ribbon cable.
