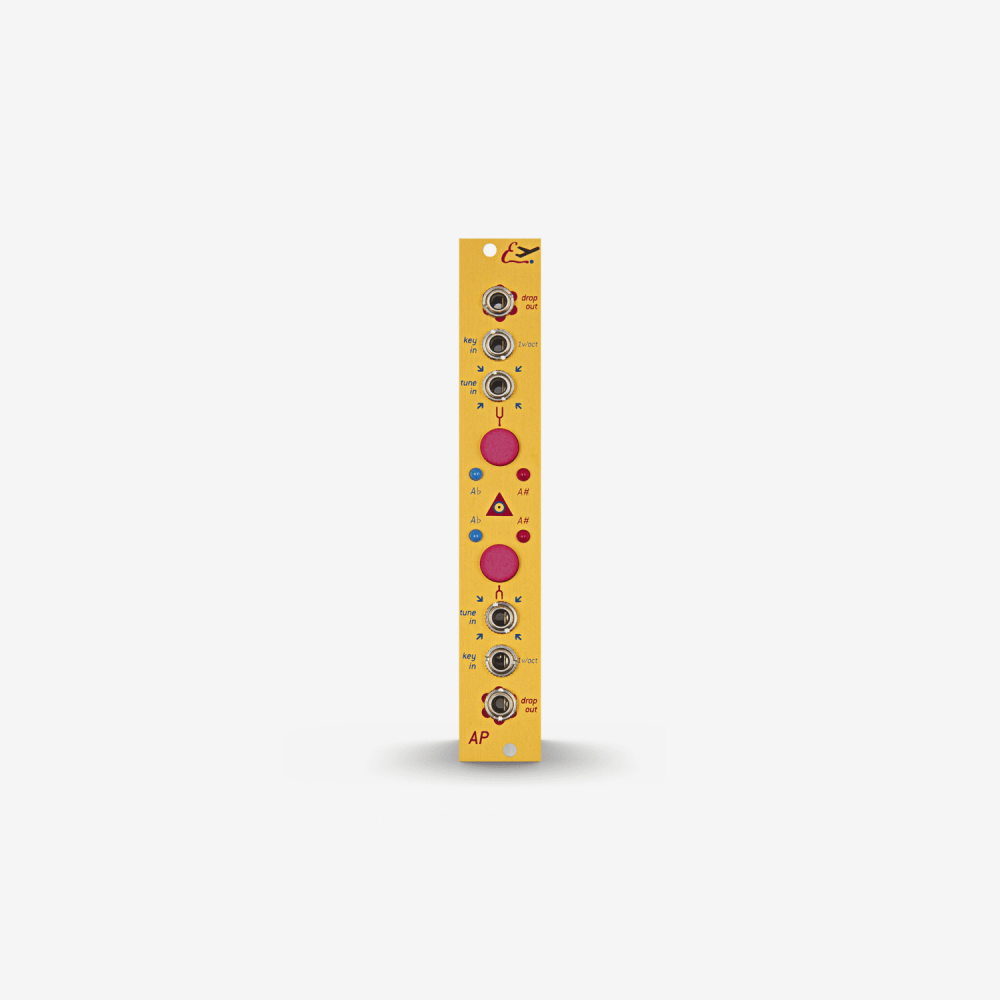

Endorphines Autopilot

DUAL CHANNEL AUTOTUNER OF OSCILLATORS

AUTOPILOT is an innovative dual tuner module. We play an A note on an oscillator. Single button press enables the tune function to the nearest A note. Long hold press disables the tune.

Tune your oscillators instantly, just apply the Autopilot in between the pitch CV and apply the reference waveform.

Improved tuners with revolutionary algorithm – especially in low range
Alternative 440 or 432 Hz root A scale added: selected mode saved on next power up (V2 firmware introduces alternative C-note 523 Hz root instead 432 Hz A-note)
Tune your oscillators instantly, just apply the Autopilot in between the pitch CV and apply the reference wave
Play an A note from your sequencer or CV keyboard. Now a single tap on the button tunes your oscillator to the closest A note.

Power consumption:
25 mA +12V
15 mA -12V
0 mA 5V

Dimensions:
4 HP
25 mm deep

FAQ:

Can Autopilot tune to alternative C-note?
Yes, however you have to manually update its firmware. By default Autopilot tunes to A-note with root 440 Hz and alternative 432 Hz.

The tuning is not working.
Make sure you did not accidentally bypass the tuning by pressing the ‘TUNE’ button for longer. Also be sure to apply simple waveform into TUNE IN jack.

How can I replace the panel with other color?
Check the Endorphines website and panels replacement guide. Also don’t forget the knobs and buttons.

Rainbow cable pinout. Side red/brown pair of pins always correspond to -12V similar as with typical gray ribbon cable.
