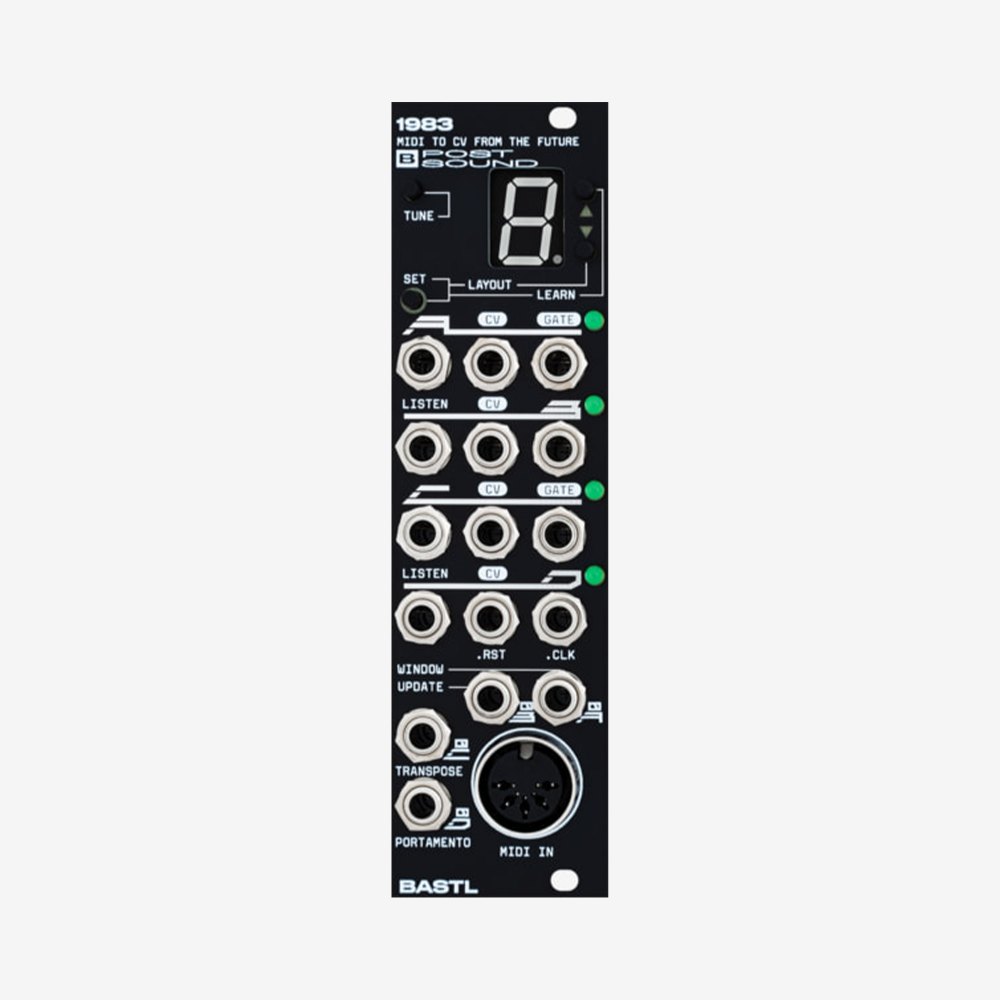

Bastl Instruments 1983

The 1983 is a polyphonic MIDI to CV interface with creative voice allocation and automatic tuning capabilities.

Everything in tune & responding to MIDI notes correctly
Four channels of CV and GATE outputs can be configured in various Layouts, such as hybrid splits between monophonic and polyphonic voices or velocity, Control Change, aftertouch, triggers, clock or reset.

Automatic tuning
Each channel can LISTEN to simple waveforms from the oscillators, and with a single press of the TUNE button, the 1983 maps the response of each connected oscillator across all seven octaves. This way, it ensures everything is in tune and with each other and that it responds to the MIDI notes correctly ( A4 = 440 Hz, etc.). PURE MAGIC!

CV inputs
The TRANSPOSE jack shifts the outputs by semitones, fifths, or octaves and the PORTAMENTO jack sets the glide time by CV.

The 1983 always stores the notes played in a legato sequence in a buffer, and the WINDOW jack allows for selecting which of these notes appear at the outputs.

When the UPDATE jack is used, it forces the outputs to update only when a trigger is detected.

This way, you can use a MIDI keyboard as an input interface for harmonies and note sets that are further creatively processed with triggers and CV in the modular environment.

Quantizer
The quad Quantizer mode on the 1983 converts input voltages into semitones of scales defined either by playing notes into the MIDI input or by the buttons in the menu. This allows the 1983 to be used tuning correction device (quantizer) without the necessity or using MIDI.

Micro tuning
Default tuning is A = 440Hz in equal temperament, but alternative tuning systems are possible with the µTune feature. It allows working with custom detuning of each semitone in the octave and, therefore, working with just intonation and alternative tuning systems.

Layouts
The 1983 has 4 channels of CV and GATE, and these Outputs can be configured into several different LAYOUTS:

4-voice polyphony
3-voice polyphony + 1-voice monophony
2 monophonic voices with velocity
1 complex monophonic voice
4 monophonic voices
8 gates
4 gates with velocity
8 CC channels
4-channel QUANTIZER

Features
4 channels of CV and GATE

LISTEN input per channel for automatic tuning
automatic tuning by a single press of a button (offset & scaling correction)
several tuning systems (equal temperament, just intonation, A = 440/432 Hz, etc.)

LAYOUT selection (4 voice, 3+1 voice, 2 velocity voice, 4×1 voice, 1 voice, 8 gates, 8 CCs, 4 triggers + velocity, quantizer)
each layout can map outputs of Channel D to MIDI Clock (adjustable divider) and Reset

LEARN mode to assign MIDI channel and other properties

UPDATE jack to quantize outputs to clock or trigger sequences

WINDOW jack to creatively allocate notes in the buffer to available voices

TRANSPOSE CV to shift outputs by semitones, fifths, or octaves

PORTAMENTO CV to adjust glide time
responds to MIDI Note On & Off, CC (also Sustain), Velocity, Pitch Bend, Clock, Aftertouch
µTune scale editing per each semitone in octave

Technical details
7 HP
PTC fuse and diode protected 10 pin power connector
24mm deep
power consumption +12: < 60mA, -12: <20 mA
