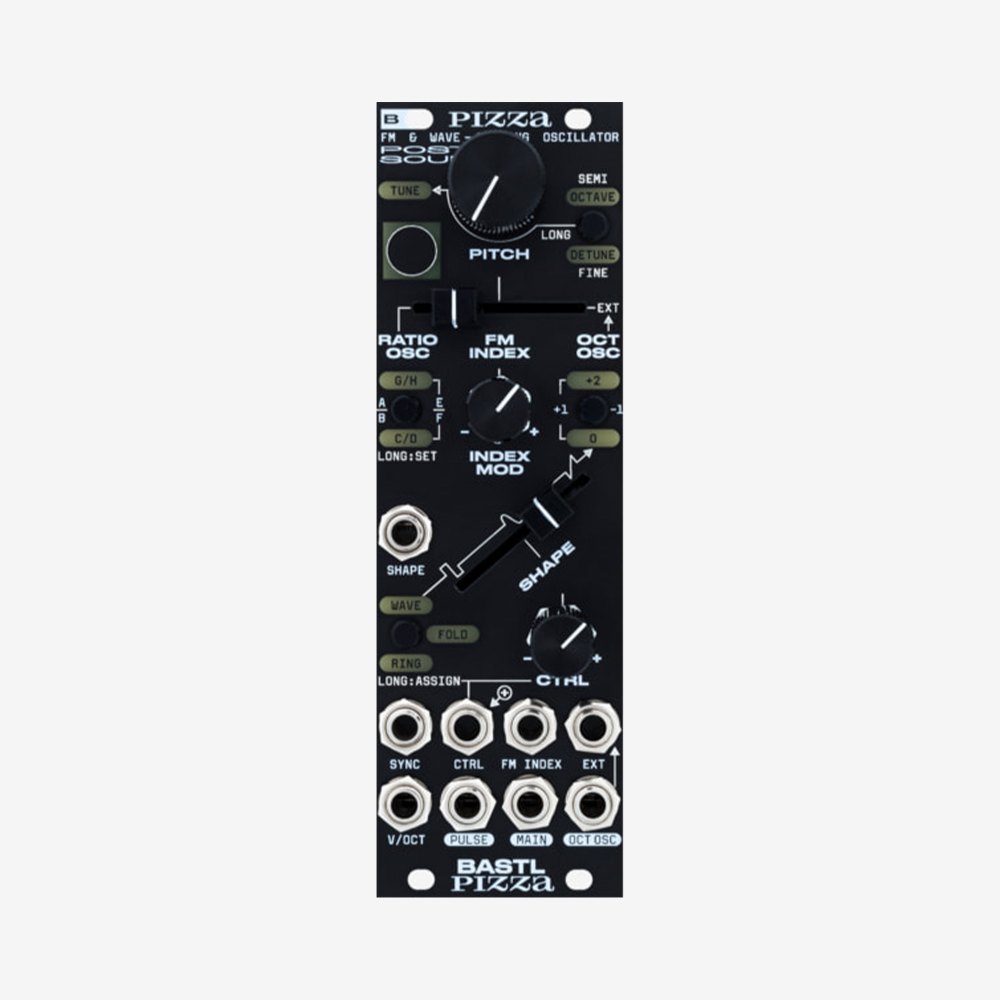

Bastl Instruments Pizza

Pizza is a compact digital oscillator with powerful wave shaping applied to FM synthesis. Pizza offers a ton of flavor in a compact form, and it grants superb access with the assignable CTRL knob and CV, while its 3 different outputs allow for high patch flexibility.

Pizza is perfect for hybrid synthesis!
The unique take on FM synthesis combined with waveshaping offers a vast sonic palette while staying intuitive. Pizza is perfect for hybrid synthesis! Waveshaping on MAIN output gives you the world of additive techniques, while the PULSE and OSC OUT speak the subtractive language where mixing the outputs into a filter will sound massive!

Because of its digital nature, Pizza does not have to be tuned, and its approach to tuning is different. You only go to the Tune mode when you actually need to. Otherwise, the PITCH knob serves as either octave transpose or detune.

3 oscillators in one
Pizza is built around 3 internal oscillators - the Main Oscillator, which can be phase modulated (FM) and wave folded, and two modulating oscillators. The modulating oscillators are the Octave (sub) Oscillator, with dedicated output, and the Ratio Oscillator, serving more advanced FM duties. Both have square-sine-saw wave shape control for more timbral variety and can ring modulate the main oscillator.
FM INDEX crossfader applies phase modulation to the Main oscillator either with the Ratio Oscillator or the Octave Oscillator (can be replaced by an external signal). The INDEX MOD attenuverter for the CV controls the FM INDEX.

Assignable control
The CTRL knob and CV input are assignable and allow you to gain more access to the oscillator core. It can be assigned to control: linear FM, exponential FM (global, Octave, or Ratio osc.), octave, detune, modulator ratio selection, wave-shaping, wave-folding, ring modulation, or built-in bipolar VCA.

Easy callibration
The EXT input allows direct phase modulation of the Main Oscillator.
The V/OCT input can be easily calibrated to match correctly with any source. Just play note C corresponding to 0V and C two octaves higher (2V), and you are ready to be perfectly in tune. You can also quantize the V/OCT input.

Features:
Complex oscillator with 3 internal oscillators
Main Oscillator with phase modulation (FM), wave folding, and ring modulation
Octave Oscillator with independent output, square-sine-saw waveshaper, and independent output
Ratio Oscillator for FM with user-adjustable ratios and square-sine-saw waveshaper
3 waveform outputs
Pulse output of the Main Oscillator
FM Index crossfader between Ratio Oscillator and Octave Oscillator
Index Mod attenuverter for the dedicated CV input
SHAPE section with wave-shaping of operators, 2 flavors of wave-folding, and ring modulation
Sync input to reset all oscillators
Octave transposition and detune via Pitch knob
Tune mode for adjusting semitone transposition and fine-tune
EXT input to replace phase modulation of the Octave Oscillator with external signal
V/OCT input with automatic calibration and quantization
Assignable CTRL knob and CV (lin/exp FM, ratios, octave, detune, waveshaping, VCA)
Firmware updates via micro USB

Technical Details:
8 HP
PTC fuse and diode protected 10pin power connector
24mm deep
current consumption: +12V: 90mA; -12V: 20mA
