Xaoc Devices Timiszoara

1970 Voltage Controlled DSP Effektor

Stereophonic/dual DSP unit based on the acclaimed, 24–bit Spin FV1 engine from Spin Semiconductor. Its open architecture allows for adding user–designed effect or function algorithms and organizing them in virtual “cartridges” on the flash card, library style. Virtually hundreds of algorithm sets can be available for immediate use.

Up to three parameters per algorithm can be voltage controlled
Additional, low–noise, voltage controlled analog dry/wet crossfader
Micro SD card slot · OLED screen for better visual reference
Voltage controlled algorithm selection
Expander is planned, adding CPU clock control and two feedback loops with tone processors.

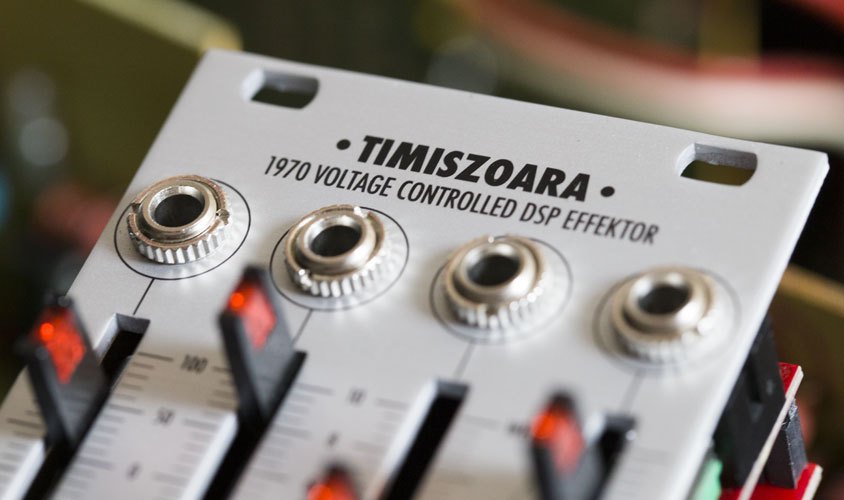

Timiszoara is a stereo, Eurorack compatible, voltage-controlled multi-effect signal processor based on the popular Spin Semiconductor FV-1 DSP chip. It features a full stereo signal path with two adjustable audio inputs, two outputs, and a stereo voltage-controlled wet/dry mixer. In addition, there is a microSD memory card slot on the front panel that allows for loading factory and custom effects without any restrictions or copyright protection, which means you can use many effects available on the Internet and even create your own.

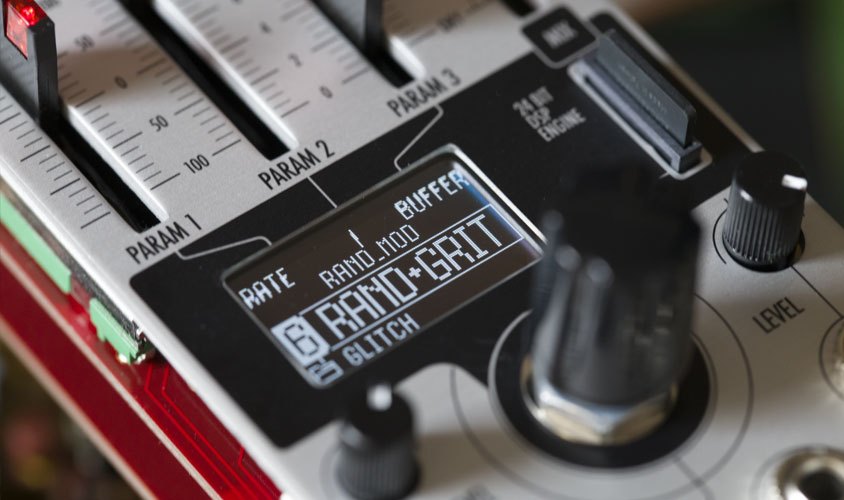

Effect programs are organized in banks of 8 and can be selected using a rotary encoder, as well as CV and trigger signals. Timiszoara features a crisp OLED screen that displays the program parameters and its name. It also facilitates navigating the list of banks. Up to three parameters per effect can be controlled from the front panel with illuminated slider potentiometers and dedicated CV inputs.

We have prepared quite a few banks of algorithms (176 in total) that cover most effects needs: delays, reverbs, filters, modulation effects (such as choruses and flangers), pitch shifters, and, of course, shimmers (no multi-effects unit would be complete without its share of those). However, we wanted to ensure that users had access to some more adventurous programs, so we created some special banks to allow you to take a walk on the wild side.

For detailed description, please refer to the manual.

FEATURES

24–bit stereo DSP engine
Up to three parameters can be voltage controlled
Low-noise, voltage-controlled analog wet/dry crossfader
Voltage-controlled effects selection
Programs stored on standard Micro SD card
OLED screen
176 factory programs
Open architecture for adding and organizing user–designed programs.
TECHNICAL DETAILS
10hp, skiff friendly
Current draw: +120/-45 mA
Reverse power protection
