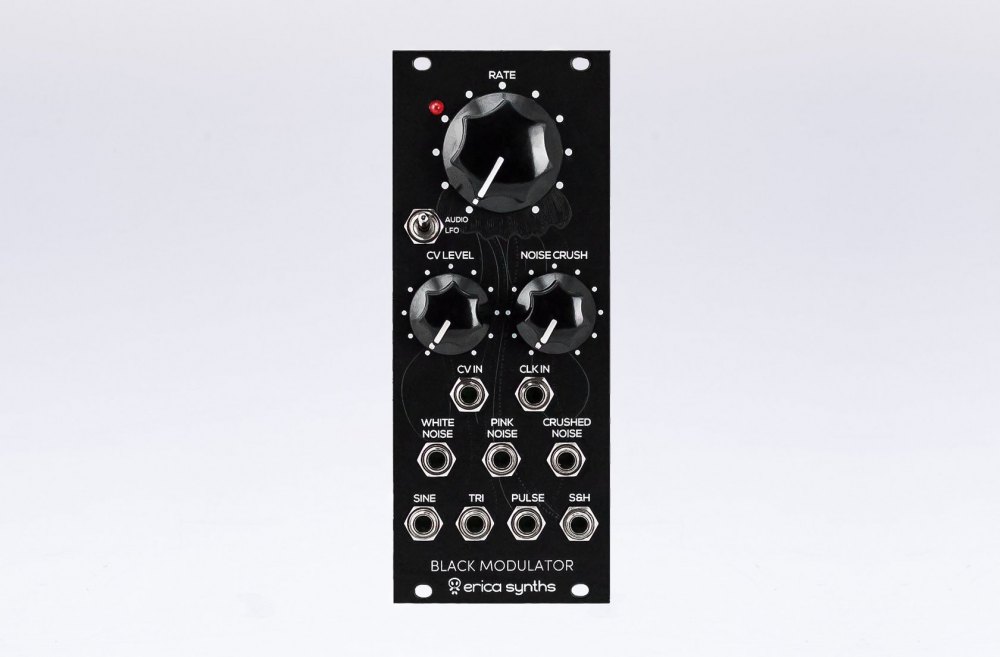

Erica Synths Black Modulator

Erica Synths Black Modulator is a fully analogue modulation and noise source.

Features
LFO with sine, triangle and pulse outputs
LFO/Audio range switch
Zener diode-based noise generator for massive, full spectrum white noise
Pink noise filter
Noise crush knob and crushed noise output – fade from 1 bit noise to individual random trigger bursts
Clockable sample and hold circuit.
S&H circuit based on rare, high quality S&H chip
S&H CV and clock inputs
This module has LFO/audio frequency oscillator with three simultaneous waveform outputs, Zener diode-based noise generator with three noise flavours and clockable S&H circuit.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.


Technical specifications:

LFO frequency 0,2Hz - 25Hz
Audio rate frequency 18Hz-750Hz
LFO output level -5V- +5V
Noise output level 10Vptp
S&H CV input levelup to 20Vptp
Power consumption +34mA, -28mA
Module width 10HP
Module depth 25mm
