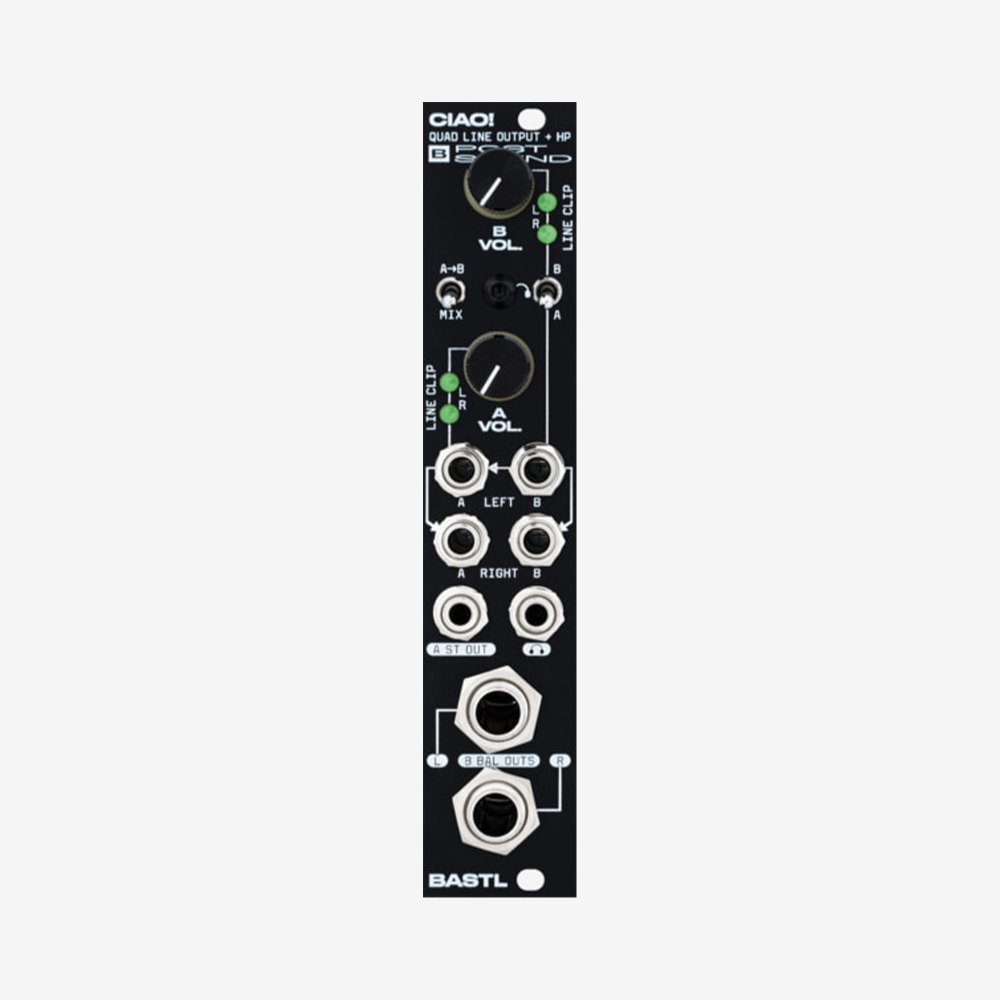

Bastl Instruments Ciao

Four high-quality line outputs for your modular in a compact format. With line-level clipping, the indication is handy for both recording and live.

Great Both for Recording and Live Jamming
Headphone output can be quickly switched to listen to one of the stereo channels. It is also great for jamming because you can separately create a sound on your headphones and then flip a switch to mix it into the final mix directly with this module. Ciao! is a handy output module with independent volume control over each stereo channel.

Features
total 4 line outputs
2 balanced outputs (left and right)
1 stereo output (could be used as second headphone output in an emergency)
headphone output
switch to select what plays in the headphones
switch to mix channel A to channel B
internal normalization allowing mono 2 stereo conversion
line-level clipping indication per channel
volume control per stereo channel
front panel from aluminium or oak wood with custom knobs
handmade locally by Bastl Instruments in Brno, Czech Republic

Technical details
5HP width
PTC fuse and diode protected 10-pin power connector
55 mm deep
current consumption: +12V: <40 mA, -12V: <40 mA
