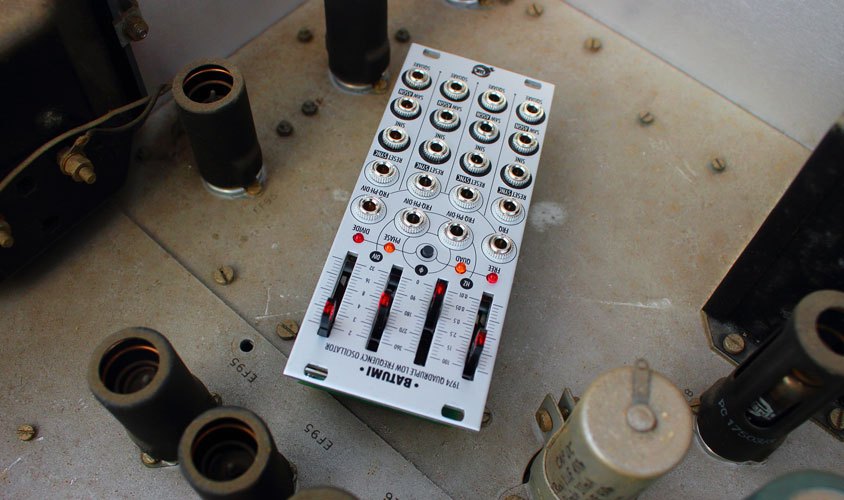

Xaoc Devices Batumi II

1974 Quadruple Low Frequency Oscillator

• 4 voltage controlled LFOs in one package
• free, quadrature, phase and divide modes
• assignable waveform outputs
• assignable reset/tap tempo inputs
• zoom mode for precise frequency setting
• USB conenctor for alternate firmware
• reversed power protection

DESCRIPTION
Batumi is a fully voltage controlled, quadruple digital LFO module with a slew of interesting and user-customizable features. Each oscillator can be used independently or in one of 3 synchronized modes: quadrature, phase and divide. For each oscillator, there are sine, square and assignable (saw, ramp, triangle and trapezoid) waveform otputs available. Voltage control is possible for each oscillator’s frequency, reset, and external sync (“tap tempo”).
The total frequency range spans from 28 hours in voltage controlled divide mode, up to 500 Hz. For detailed description, please refer to the manual.

FEATURES
four voltage controlled LFOs
free, quadrature, phase and divide modes
assignable waveform outputs
assignable reset/tap tempo inputs
zoom mode for precise frequency setting
USB connector and a special app for easy firmware updates
different feature packed firmware versions to choose from
reverse power protection

TECHNICAL DETAILS
eurorack standard compliant
10 hp wide
45 mm deep (skiff friendly)
+12/-12V powered
current draw: 45mA at +12V rail; 15mA at -12V rail

EXPANDABILITY

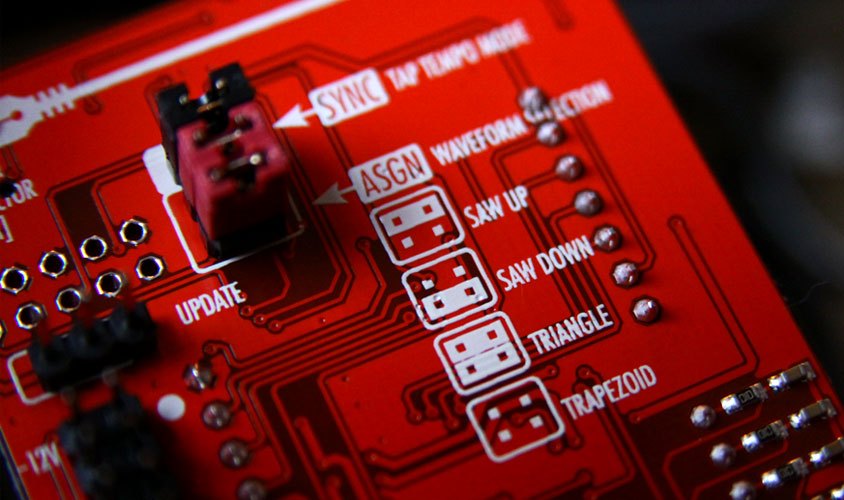

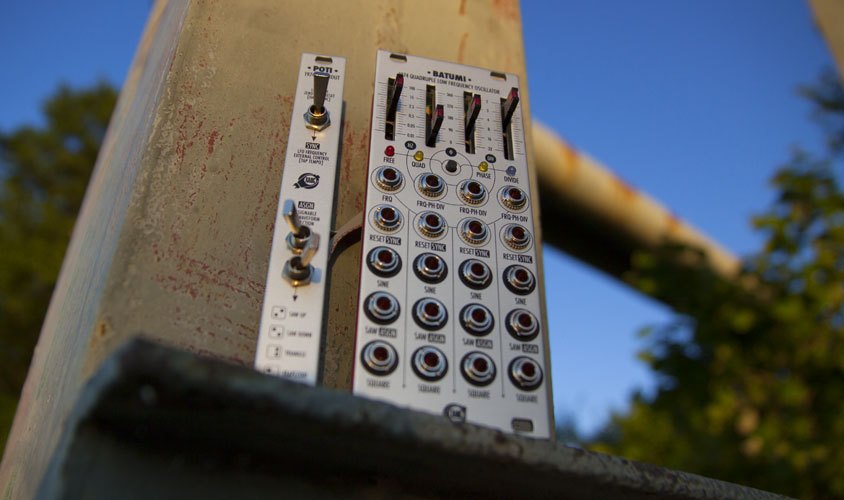

Poti is a simple and straightforward breakout module for Batumi, providing an immediate access to the Batumi functions originally selected by the cluster of jumpers: Reset/Sync mode option and selection of the assignable waveform.
