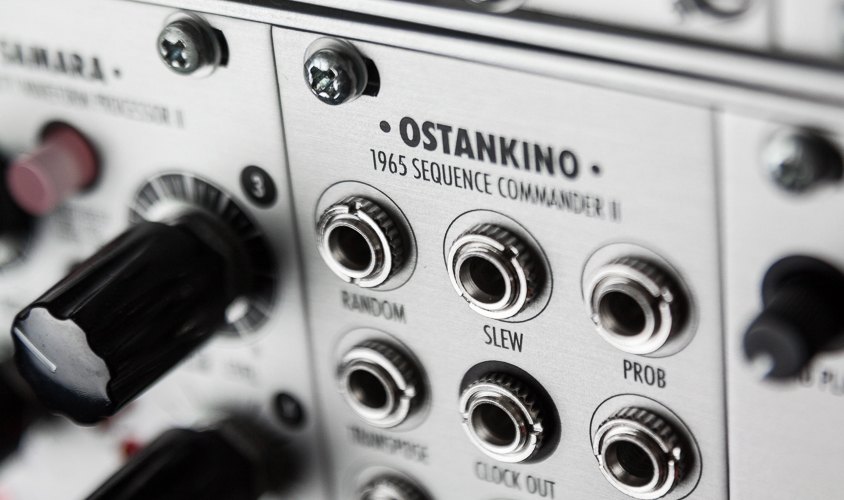

Xaoc Devices Ostankino II

1965 Sequence Commander

Ostankino II is an expander for the Moskwa II sequencer module. It greatly augments Moskwa II’s connectivity giving the user the ability to use CV to change most parameters.

Ostankino II also adds quite a few outputs including access to the Leibniz Binary Subsystem.

• Voltage control over Moskwa II parameters:
• Random, slew, probability, transposition, range, first and last step inputs
• Step repeat CV input and button
• Internal clock output
• Individual gate/trigger outputs for each sequence step

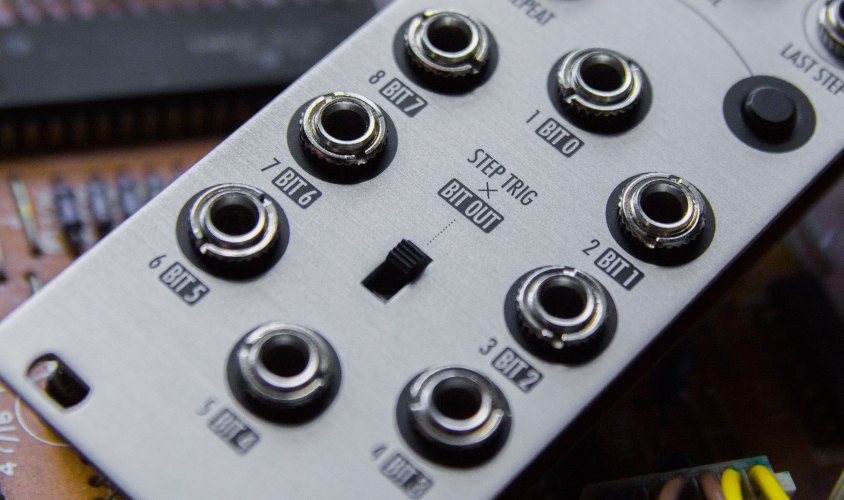

• Bit outputs for each sequence step, fixed connection with Leibniz Binary Subsystem

Ostankino II is an expander for the Moskwa II sequencer module. It greatly augments Moskwa II’s connectivity giving the user the ability to use CV to change most parameters. Ostankino II also adds quite a few outputs including access to the Leibniz Binary Subsystem.

FEATURES
Voltage control over Moskwa II parameters: random, slew, probability,
transposition, range, first and last step inputs
Step repeat CV input and momentary button
Internal clock output
Individual gate/trigger outputs for each sequence step
Bit outputs for each sequence step, fixed connection with Leibniz Binary Subsystem

DETAILS
eurorack standard synthesizer module, fully Doepfer compatible
8hp wide
requires Moskwa II module
Current draw: +10mA/-0mA (via Moskwa II)
skiff friendly (25 mm)
