Maneco Labs Clusterverb

An effects processor with three simultaneous sections, reverse , delay with tap tempo and reverb with freeze , capable of the most complex sound landscapes but intuitive and user friendly at the same time.

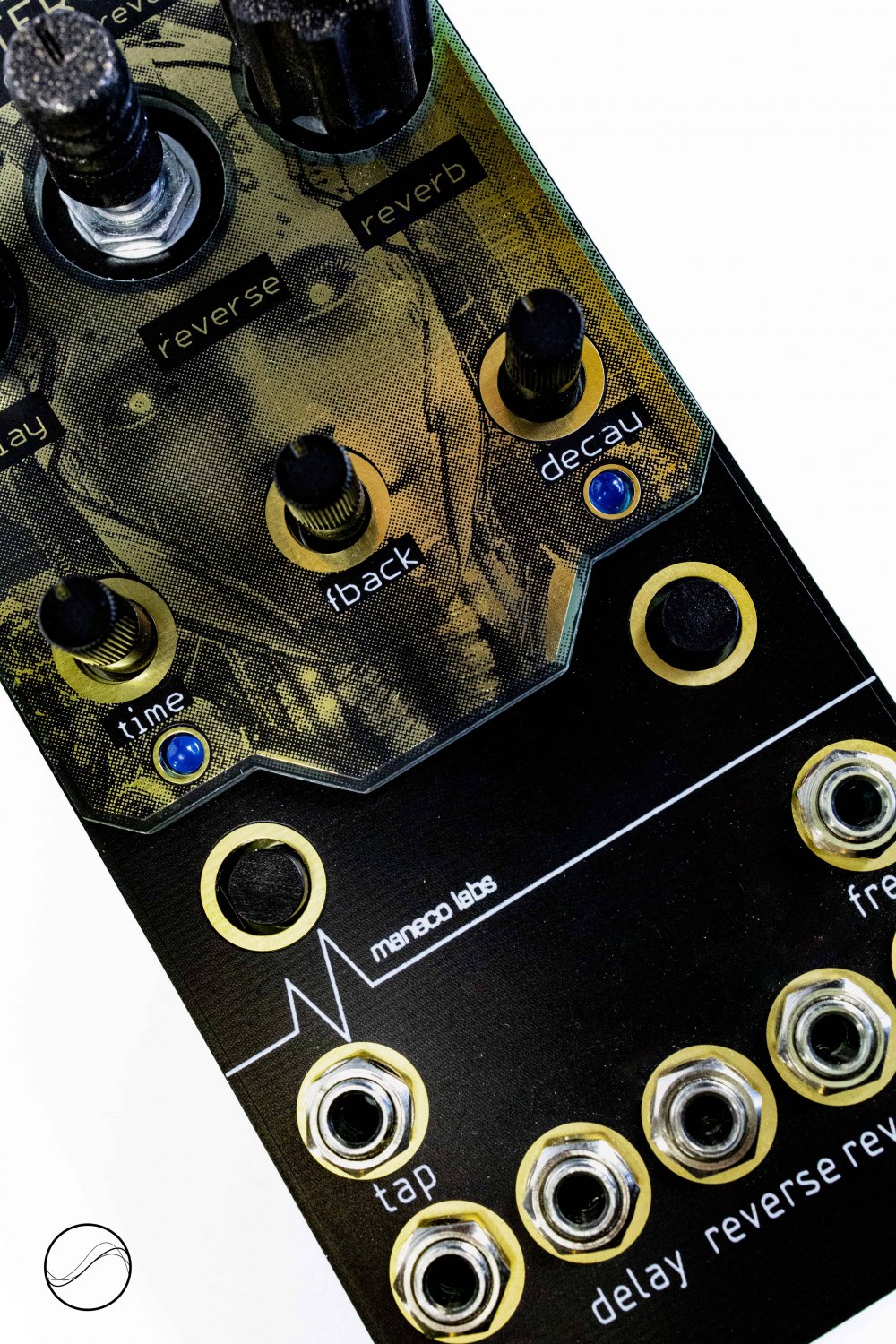

Controls

Delay level : sets the blend between previous stage (reverse component ) and delayed output.

Delay time : sets the speed of the repetition, works in tandem with tap tempo button , with a blinking led for immediate time information

Delay feedback : controls the amount of repetitions, from one to a sustained loop at high values

Reverse: balances between dry input and reversed component.from dry to 100 % reverse.

Reverb : balance between previous reverse and delay stages, from no reverb to 100 % wet

Decay : sets size and decay for the reverb, from small chambers to huge atmospheres.

Momentary touch switches for delay tap tempo and reverb freeze engage

Jacks: input signal, output signal , cv control for delay , reverse and reverb levels , remote trigger inputs for tap tempo and reverb freeze


Power consumption

+12v 150 mA

-12v 15 mA

Module width : 12HP
