Frap Tools UNO Case

uno / ˈuːno / adj., n., and pron. [italian, from latin ūnus] – ‘one’, the first natural number, it expresses a single unit. The very first product we made: a unitarian, stand-alone solution for the modern electronic musician.
UNO is the first and only foldable case for eurorack modular synthesizers that folds patched. It is designed to ensure that your patch may easy “rest” when you’re traveling.

In a few seconds you can take it of from its soft padded bag, unfold it, power it and you’re done.

The patching system is compatible with the big part of standard eurorack cables, like Doepfer, AdInfinitum, Erica Synths, Black Market Modular, Befaco. It is also compatible with TipTop Audio’s Stackcables (up to 2 of them might be stacked per row, in the same area. Depending on the cables you’re using, it may be necessary to rotate the cables a bit to allow for the case to close perfectly and not to damage any jack socket.

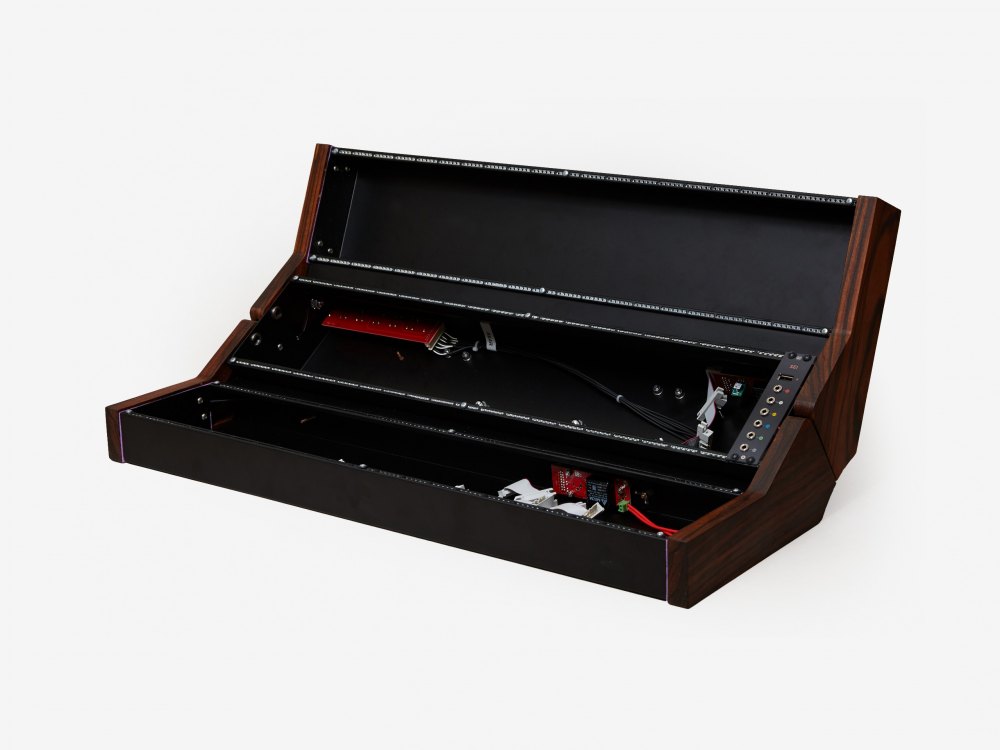

Space for your modules

The UNO supports modules up to 50 mm deep in the upper and lower row, and up to 80 mm deep in the middle row (depending on the main power board installed).

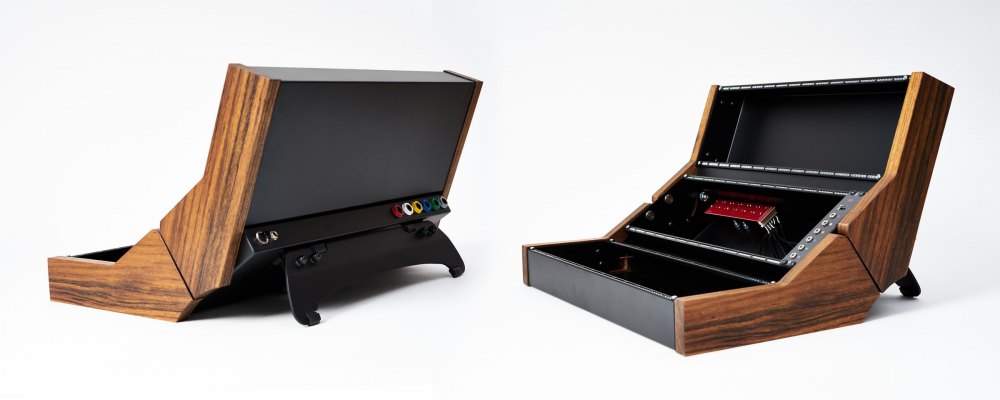

It folds patched

Right, UNO folds patched with the major kind of cables: it also works with up to 2 TipTop Audio Stackcables stacked! This is a real time-saver so you don’t have anymore to repatch from zero.

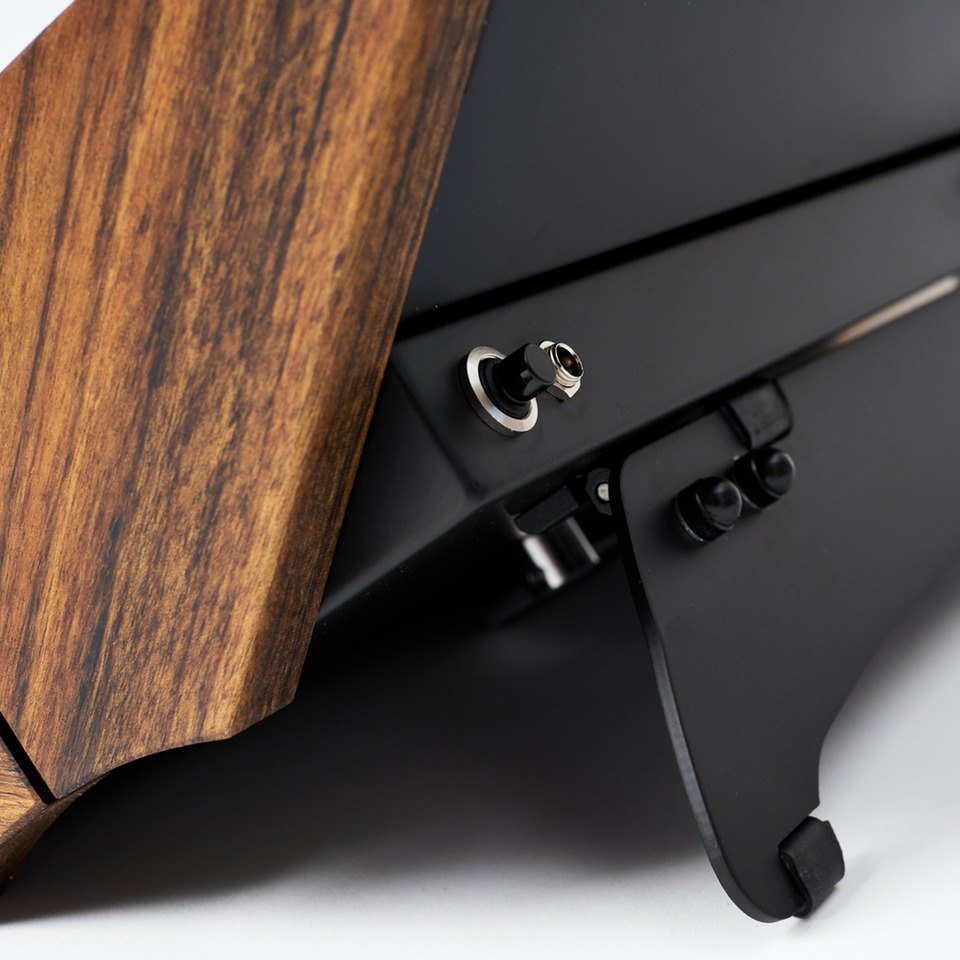

Elegant, yet Simple Construction

All screws, folding mechanics and safety locks are hidden within an extremely well-constructed case, with an elegant form and beautiful lines. In addition, the UNO eurorack foldable case is entirely designed and crafted by hand in Italy.

Portable

Thanks to its soft bag, you can bring it where you want.
Due to its compact dimensions the UNO84HP also meets carry-on dimensions requirements for major airlines.


SILTA & SEI powered

UNO now ships with a built-in SEI trunk module for fast loops with external pedals, and ease the routing with any external 1/4″ jack based hardware.

It is powered by SILTA: each row has its own active power board already installed. You don’t have to do anything except mounting your modules and start patching. It comes with a 90W 24V DC external power brick and an EU/Schuko or US cable.

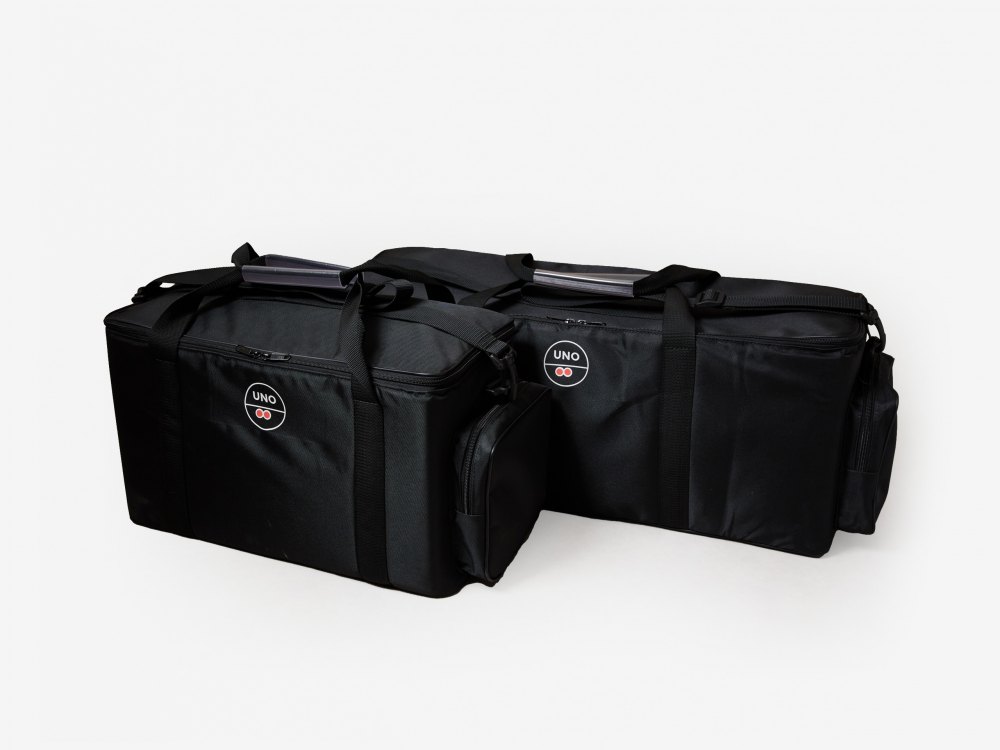

Soft Bag included in each UNO
The UNO Soft Bag features:

a double zip, and comes with no holes on the top: this means that even if it is rainy, you can carry UNO with you without the risk to wet your precious modules
two handles now are present on the sides to ease the movement in small spaces and short trips
a shoulder belt to ease any long trip
a pocket on one of the two small sides, that can host your power brick ans some patch cables
an inner padding made with a 5 mm closed cells polyurethane foam with no “memory” as time passes by
rubber feet on the bottom

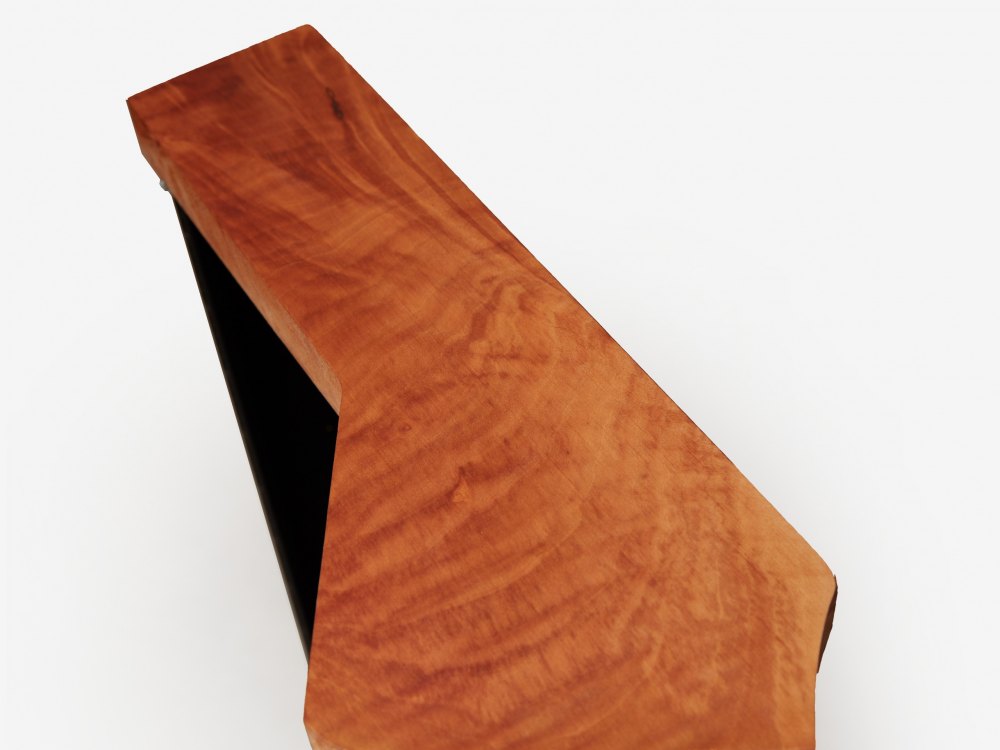

Beautiful solid wood case

The UNO is available in different flavors, so you can choose the one that best fits with your style. Wood is hand finished with clear boiled linseed oil, in order to emphasize the warmth and feeling of the material. No colors are applied. Currently woods are wenge, zebra, pear and dark zebra (subject to availability).

Specifications:

Sizes

84HP – per row, for a total of 252HP
126HP – per row, for a total of 378HP
Woods Wenge, Zebra, Pear, Dark Zebra or the brand new Ovangkol

We specify that Dark Zebra is really rare: we had less than 7% on all the productions, and its request may lead to a long waiting list

Dimensions out of the bag (WxHxD in mm)

folded: 470(84HP) / 684(126HP) x 210 x 297
unfolded: 470(84HP) / 684(126HP) x 278 x 380
Max Depth Available

50 mm on upper and lower row
up to 80 mm on inner row
SILTA powered

3’750 mA @ +12V, 1’250 mA per row
3’750 mA @ +12V, 1’250 mA per row
1’500 mA @ +5V on inner row
Included in each uno

1x UNO soft bag
1x SEI trunk lines module (mounted)
