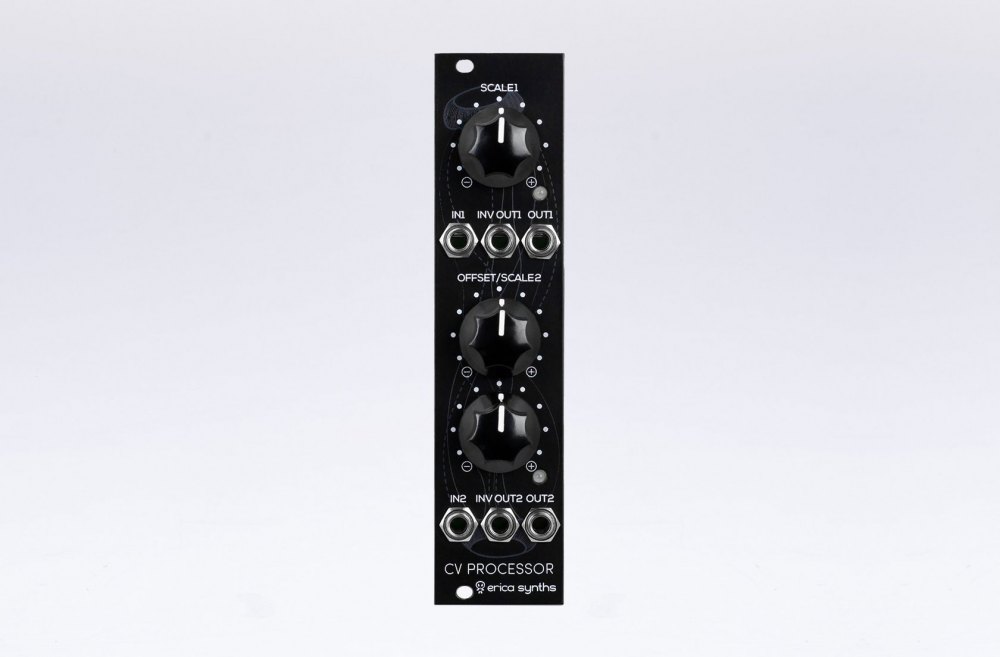

Erica Synths CV Processor
$119.00
Erica Black CV Processor allows you to manage CV signal levels and polarity.
Features
CV/audio signal attenuverter/booster
CV/audio signal offset
Direct and inverted signal outputs
Bicolour LED for signal state
Diode protection on reversed power supply
It contains two parts; the input of the bottom one is normalled to the output of the top one, and if signal is plugged in Input of the top part only, it is split in two signals, each of which can be independently altered.
Technical specifications:
CV Input signal level-10V – +10V
Power consumption+20mA, -20mA
Module width6HP
Module depth25mm
Features
CV/audio signal attenuverter/booster
CV/audio signal offset
Direct and inverted signal outputs
Bicolour LED for signal state
Diode protection on reversed power supply
It contains two parts; the input of the bottom one is normalled to the output of the top one, and if signal is plugged in Input of the top part only, it is split in two signals, each of which can be independently altered.
Technical specifications:
CV Input signal level-10V – +10V
Power consumption+20mA, -20mA
Module width6HP
Module depth25mm
Out of stock
- Manufacturer's warranty
- Pre-orders ship 1-2 days after arrival in NZ
- Free NZ/AU shipping on all orders over NZ$399
- Free worldwide shipping on all orders over USD$499
Status Pre-order
Manufacturer Erica Synths
Functionality
Modulation Source
