Bastl Instruments CV Trinity
$499.00
CV Trinity has 6 independent channels with CV outputs, each of which can be set to AUTOMATION, LFO or ADSR. Each channel also has a CV INPUT. The selected output [select OUT] outputs a copy of the channel that is selected for editing and lights the indication LED. Use SELECT buttons for selecting the channel and knobs for adjusting its parameters. Pressing the mode button changes between the modes. Clock OUT can be adjusted by holding select button and turning the top knob. Clk OUT is normalized to Clock IN
Automation is 32 step voltage memory with adjustable amount of linear interpolation. Hold the record button and turn RECORD knob to adjust the automation curve. Clock input advances to next automation step. Automations can be variable number of steps and can be clocked either by master clock input or by individial CV inputs.
LFO has RATE that goes up to audiorate, XOR waveshaping and SHAPE selection with ramp, triangle, inverted ramp, flopping ramp, flopping triangle and stepped random voltage source with smoothing. The random signal can be looped. LFO can by synchronized to clock input (different divisions/multiplications are than set with the RATE knob). CV input controls the RATE of the LFO.
ADSR uses the CV input as GATE input for triggering the envelope. It can be linear or exponential, it can be looped and it can either work in ADSR mode or AHR mode. DECAY is set to the same value as RELEASE.
Features
6 independent modulation channels
CV input and CV output per channel
select OUT outputs current selected modulation channel
indication LED for select OUT
each channel can be either AUTOMATION, LFO or ADSR
AUTOMATION: clocked 32 step memory with adjustable linear interpolation, number of steps and possibility of independent clocking
LFO: rate, XOR waveshape, shape (ramp, inverted ramp, triangle, flopping ramp, flopping triangle, stepped random with smoothing and looping), synchronisation with clock
ADSR: attack, sustain , decay set to same value as release, linear or exponential, looping mode, attack-hold- release mode
jumpers to select 0—5V or 0—10V range for each CV input
clock input
clock generator output normalized to clock input
handmade locally by Bastl Instruments in Brno, Czech Republic

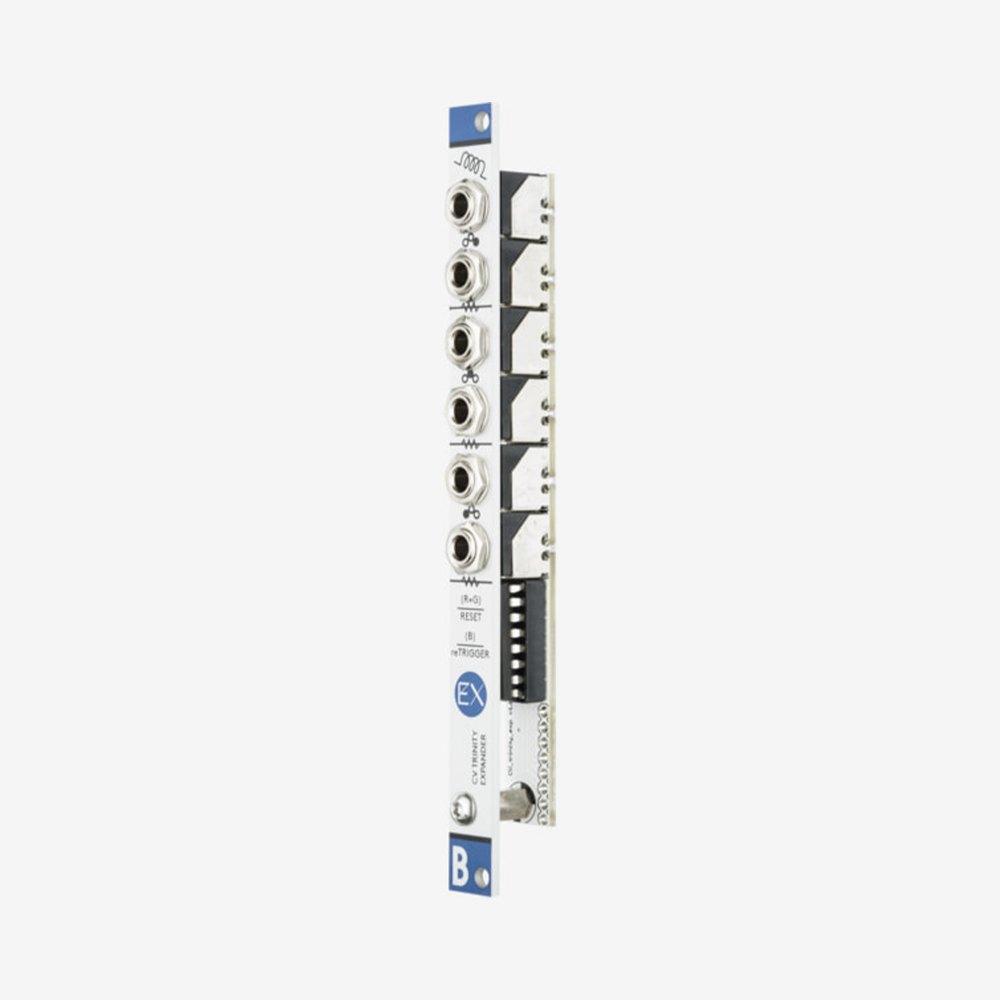

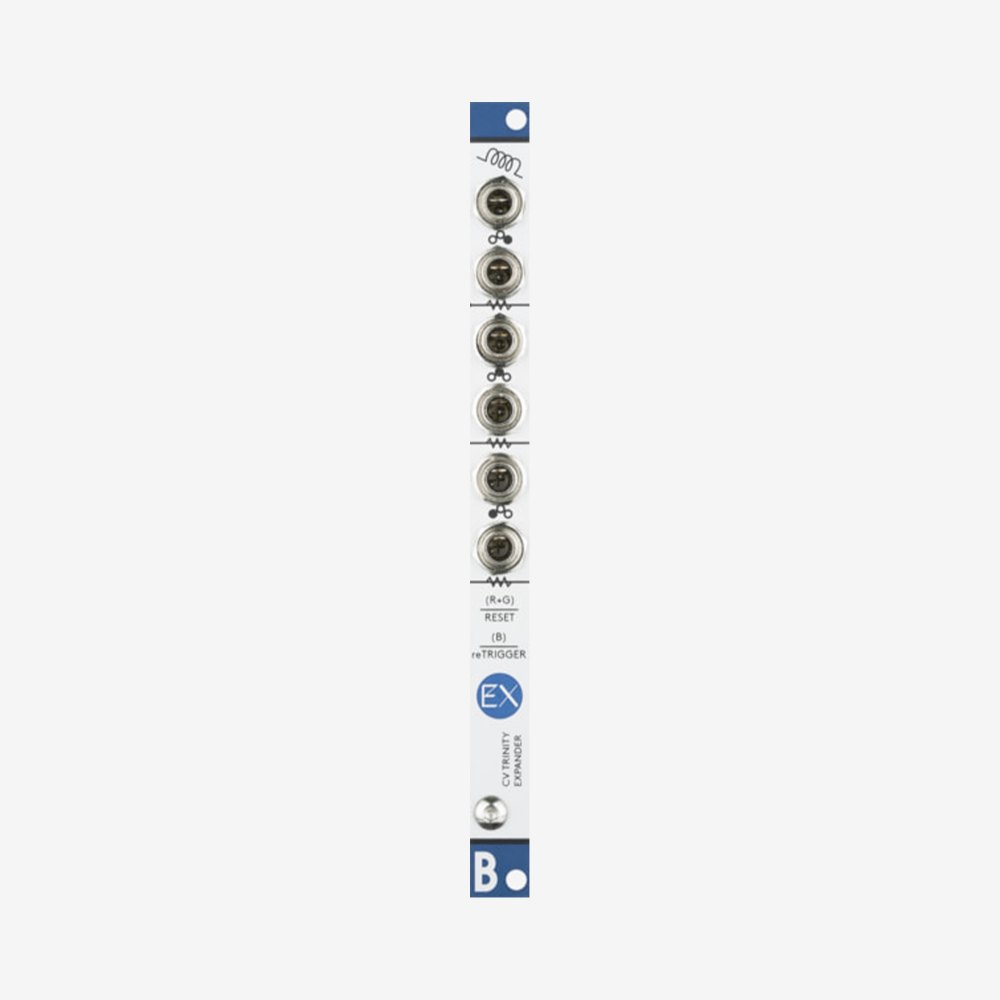

add channel independent reset/re-trigger inputs with CV Trinity Expander
Technical details
14 HP
35 mm deep
PTC fuse and diode protected 16 pin power connector
requires +5V on bus board
current consumption: +12V: <5mA, -12V <5mA, +5V: <35mA
This set is the full bundle, including the expanders!
In stock
Ships in 1–2 days
- Manufacturer's warranty
- Pre-orders ship 1-2 days after arrival in NZ
- Free NZ/AU shipping on all orders over NZ$399
- Free worldwide shipping on all orders over USD$499
Manufacturer Bastl Instruments
Functionality
Low-freq Oscillator LFO, Random source, Envelope Generator, Utility, Clock
