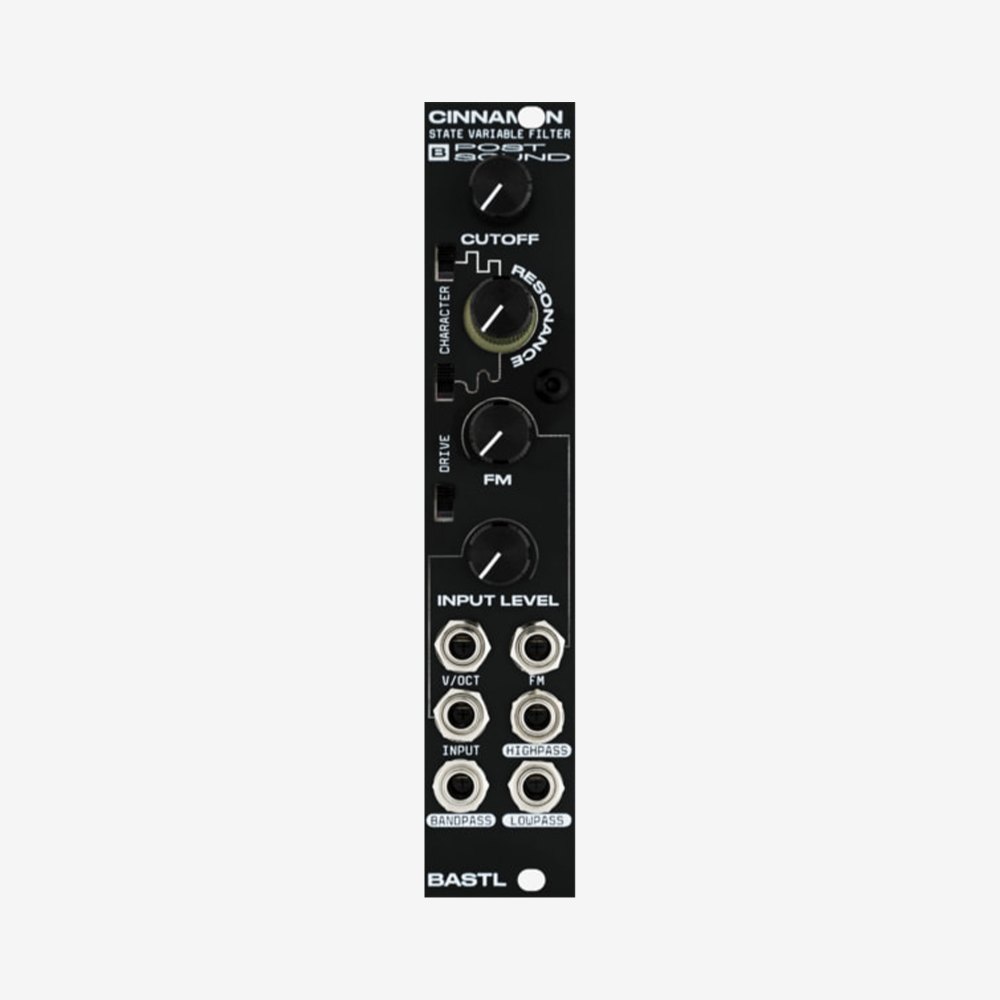

Bastl Instruments Cinnamon

Cinnamon is a unique sounding filter. The presence of drive and character switches makes it a multi-flavored spice for your sound!

Voltage Controlled Cutoff and Character Switches to Spice Up Your Sound!
Combining the input volume with the character switches affects the output sound drastically.

Features
voltage-controlled cutoff frequency
CV input with attenuator
volt per octave CV input
audio input with gain control
drive switch to overdrive the input of the filter
low pass output (12db/oct – 2-pole)
bandpass output (6db/oct – 1-pole)
high pass output (12db/oct – 2-pole)
resonance control

character switches to change the resonance response (character switches might break V/Oct tracking)
with maxed resonance works as an oscillator (0°, 90°, and 180° phased sinewave at LP, BP, and HP outputs)
character switches change the waveform when self-oscillating and might also break the V/Oct tracking
front panel from aluminium or oak wood with custom knobs
handmade locally by Bastl Instruments in Brno, Czech Republic

Technical details
5HP width
PTC fuse and diode protected 16pin power connector
35mm deep
current consumption: +12V: <30mA, -12V: <30 mA
